• 360-Degree Camera
• 5G Modem
• B&O Sound System
• Blis W/Cross-Traffic Alert
• Electrochromic Mirror
• Ford App
• Intelligent Access W/Push Button Start
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Pre-Collision Assist W/Aeb
• Rear Parking Sensors
• Reverse Brake Assist
• Sync4 W/12" Screen

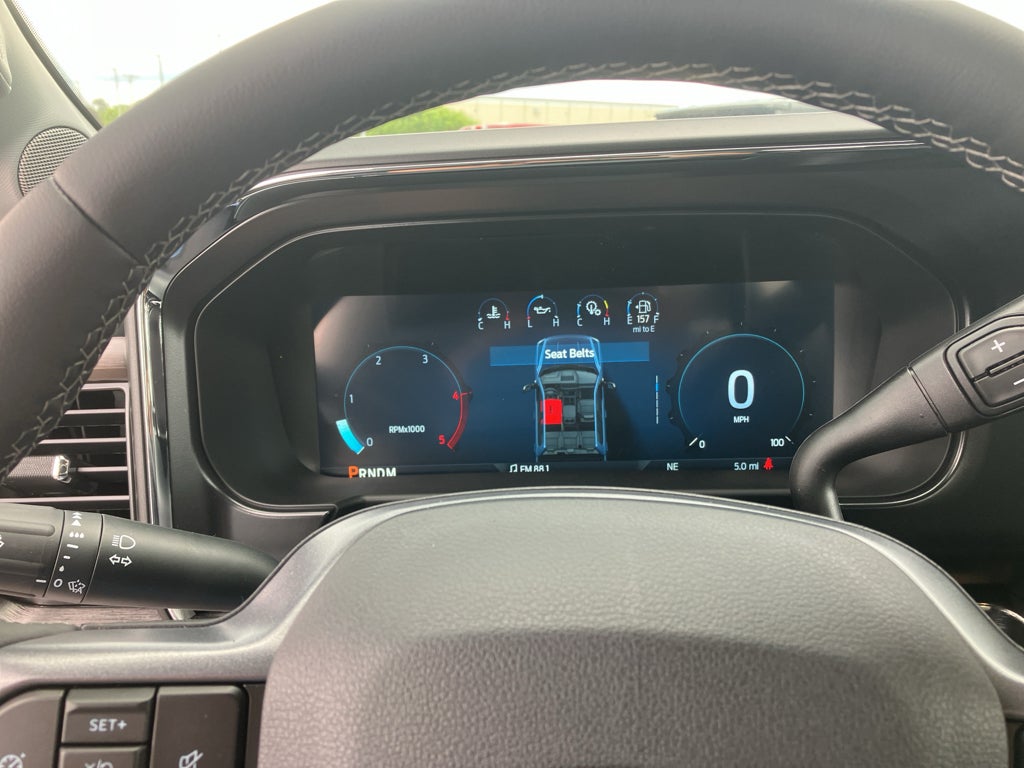

• 12" Cluster Display
• 1Touch Up/Down Dr/Pass Win
• Ambient Lighting-Fixed
• Dual-Zone Electronic Auto Climate Control
• Heated Steering Wheel
• Htd/Ventilated Frt Seats
• Outside Temp Display
• Particulate Air Filter

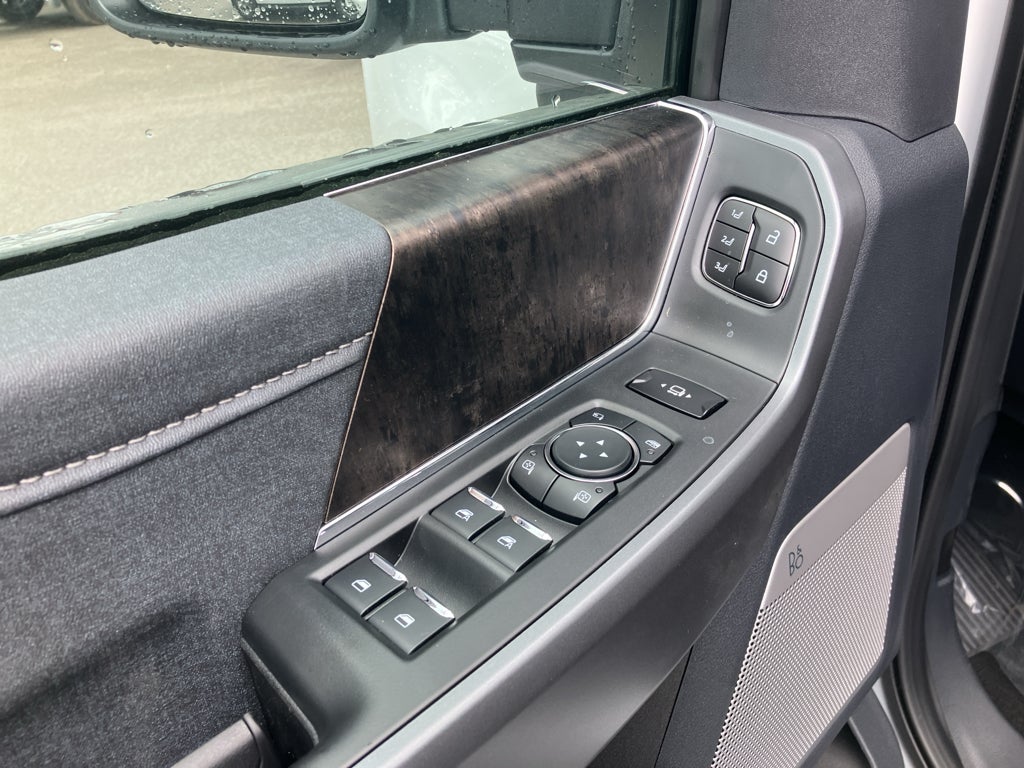

• Power Locks And Windows
• Pwr Driver And Pass Seat
• Tilt/Telescope Str Column

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Led Ctr High Mnt Stop Lamp
• Secure Pkg 1 Yr Included
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Lariat® F-350® DRW (628A)

360-Degree Camera Package

Ford Security Package (1-year included with activation)

Fixed 10,000 lb. GVWR Package

Ford Connectivity Package (1-year included)

• Order Code 628A: Front ActiveX Trimmed 40/console/40 Seats; LT245/75Rx17E BSW A/S (6) Tires; 14
• 000 Lb Payload Package GVWR; 17" Forged Polished Aluminum Wheels; B&O Sound System by Bang and Olufsen
• Limited Slip with 3.55 Axle Ratio
• Pre-Collision Assist with Automatic Emergency Braking (AEB) forward collision mitigation
• 5G Modem - Ford Connectivity Package mobile hotspot internet access
• Reverse Camera rear mounted camera
• Reverse Brake Assist collision mitigation
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Connected Navigation integrated navigation system with voice activation
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Heated rear seats

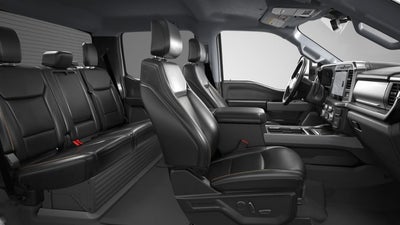

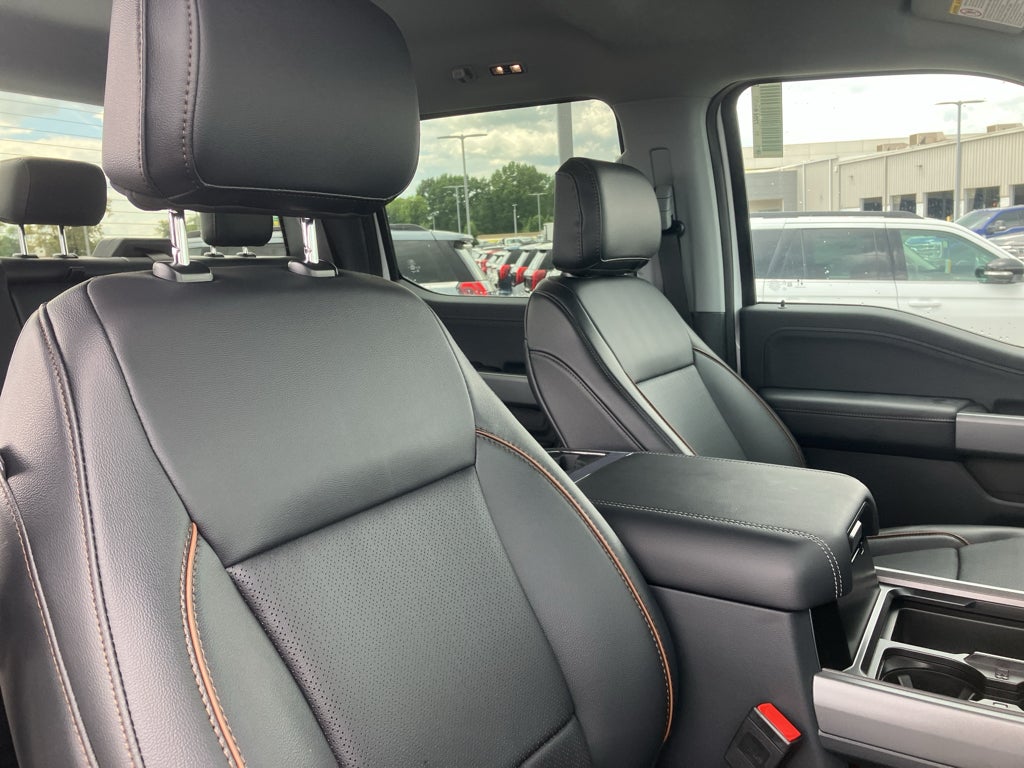

• ActiveX leatherette front seat upholstery

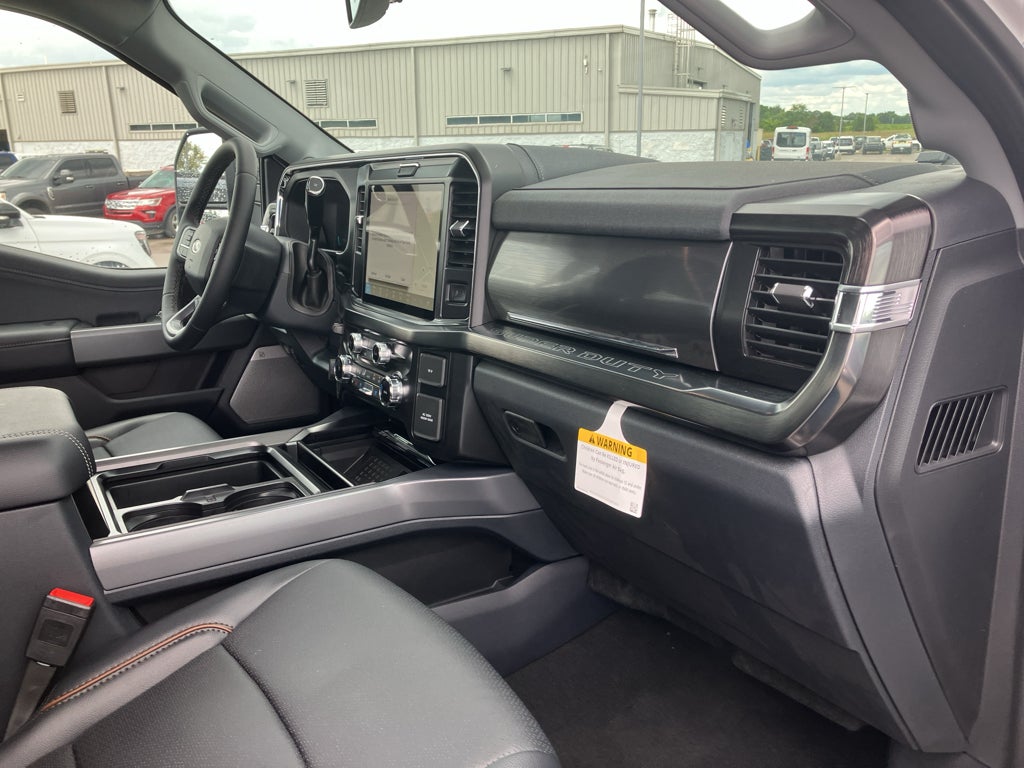

• Primary monitor touchscreen

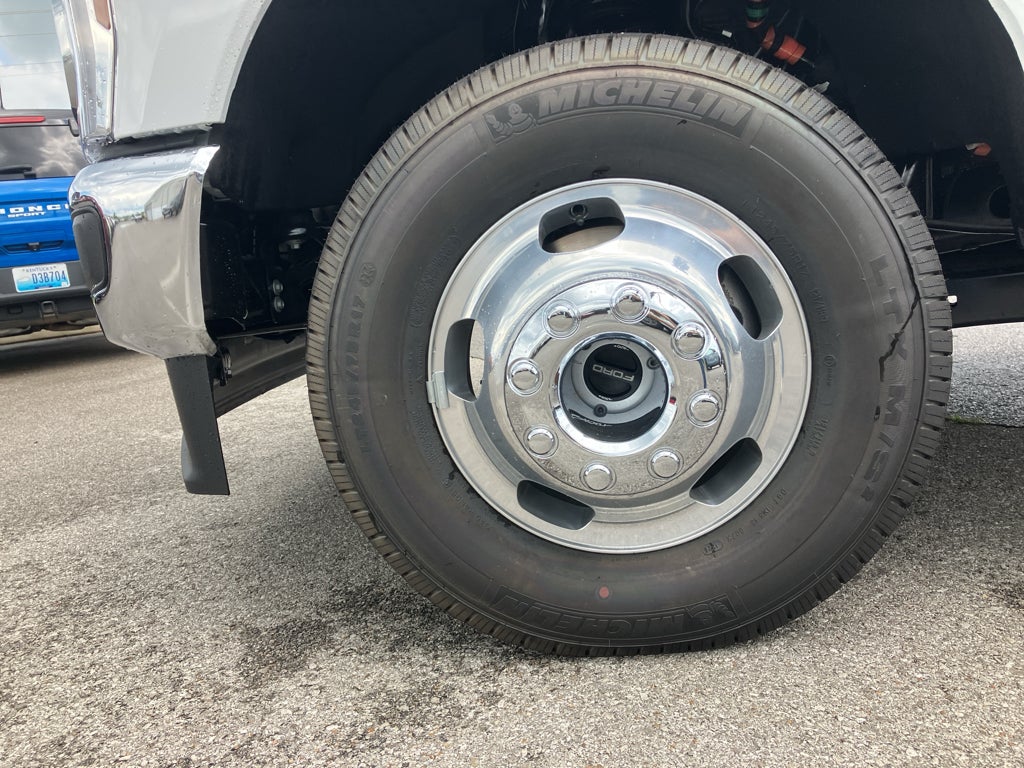

• 17 x 6.5-inch front and dual rear polished forged aluminum wheels

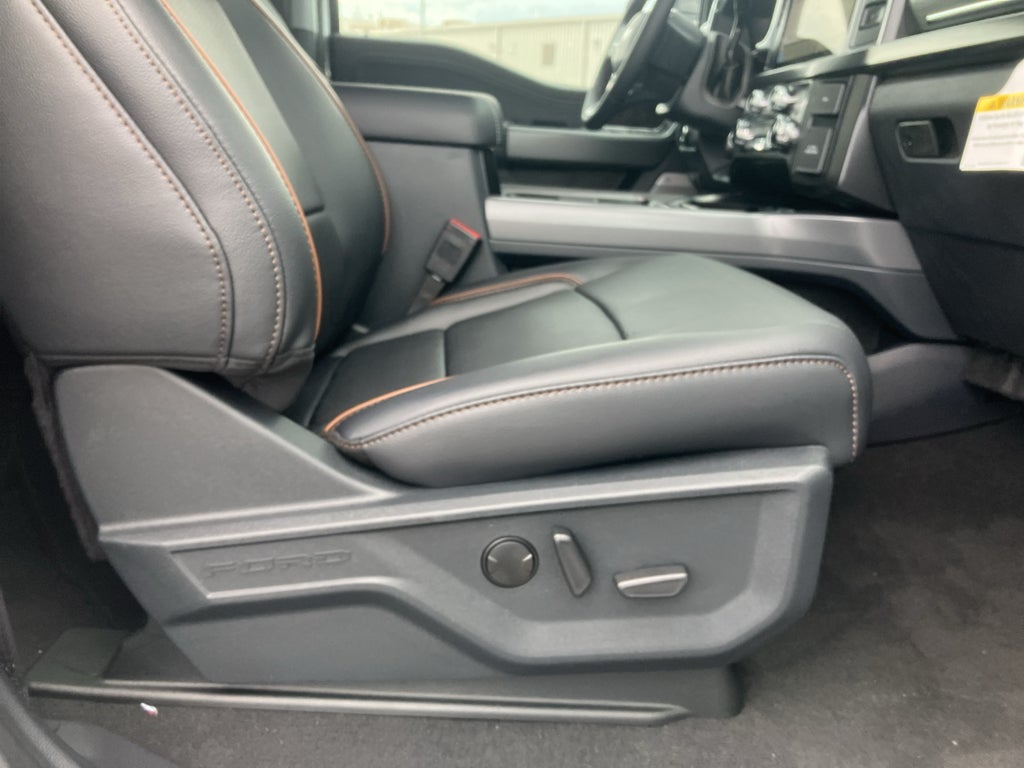

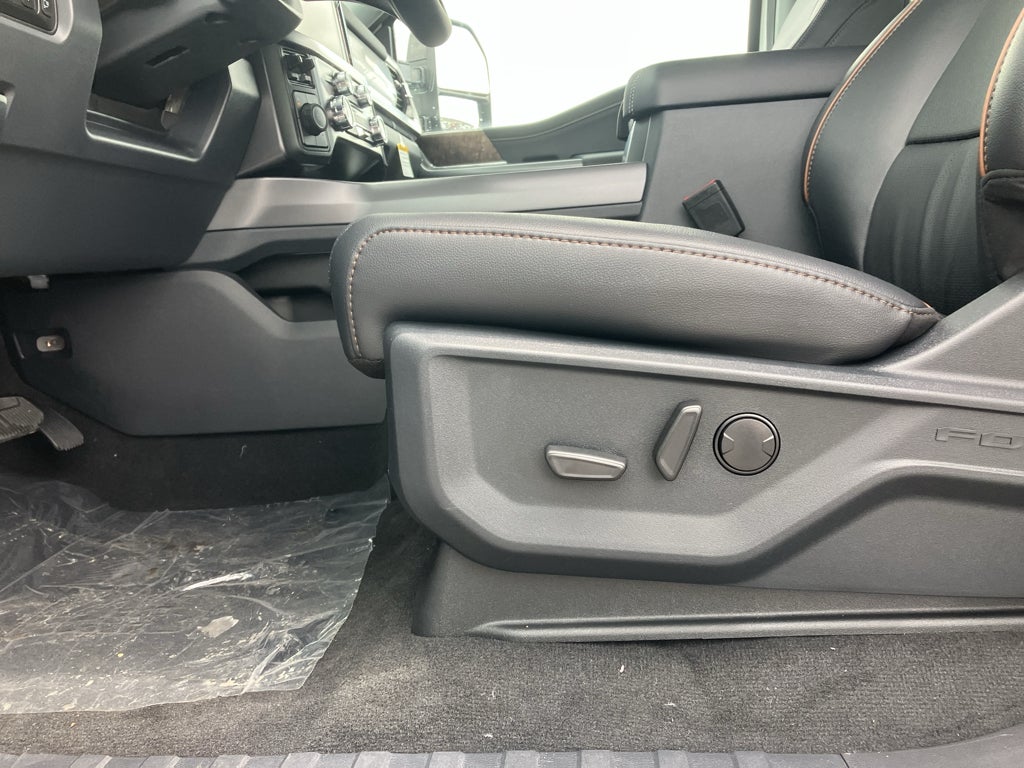

• Driver seat power reclining
• lumbar support
• fore/aft control and height adjustable control
• Part-time 4WD

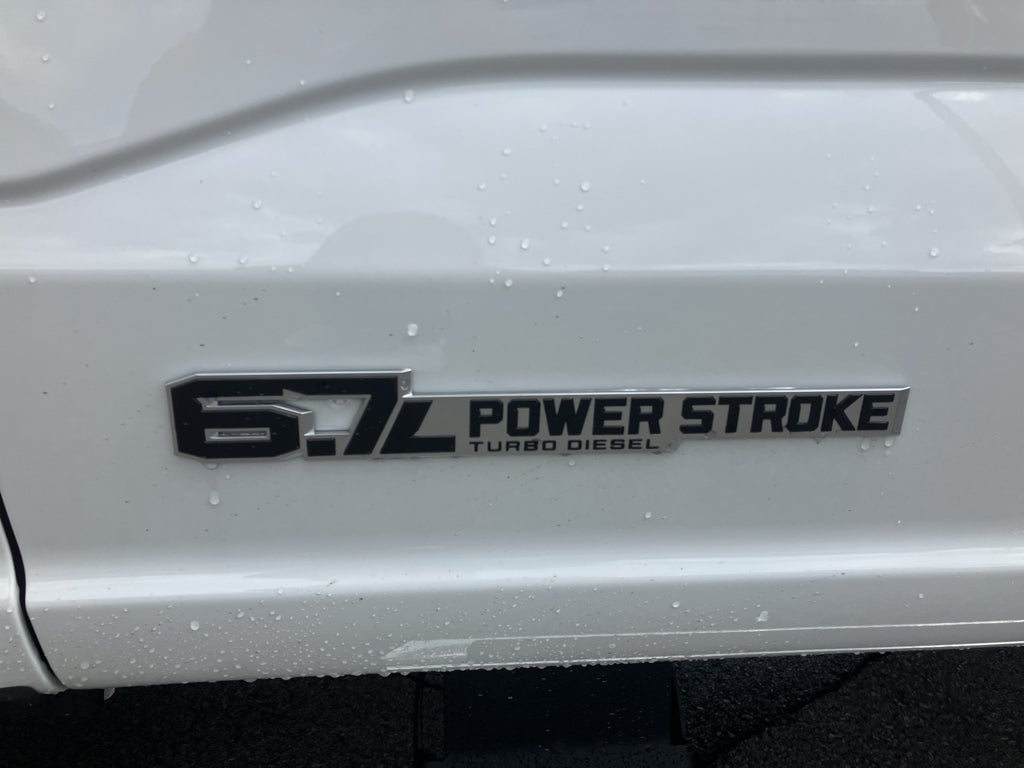

• Powerstroke 6.7L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 475HP
• Powerstroke 6.7L V-8
• Front wireless smart device charging
• Voice Assistant - Ford Connectivity Package built-in virtual assistant
• Intelligent Access with hands-free access and push button start

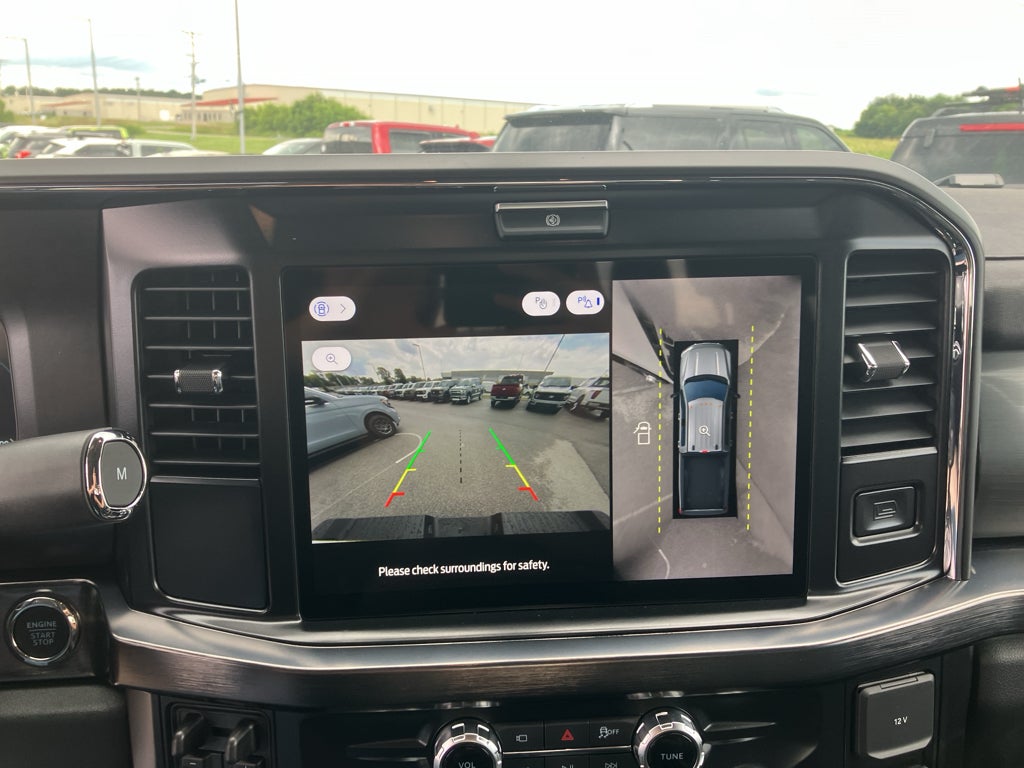

• Aerial view camera
• Smart device remote start
• Push-button
• Bluetooth® wireless audio streaming
• Dynamic Hitch Assist vehicle to trailer hitching assist

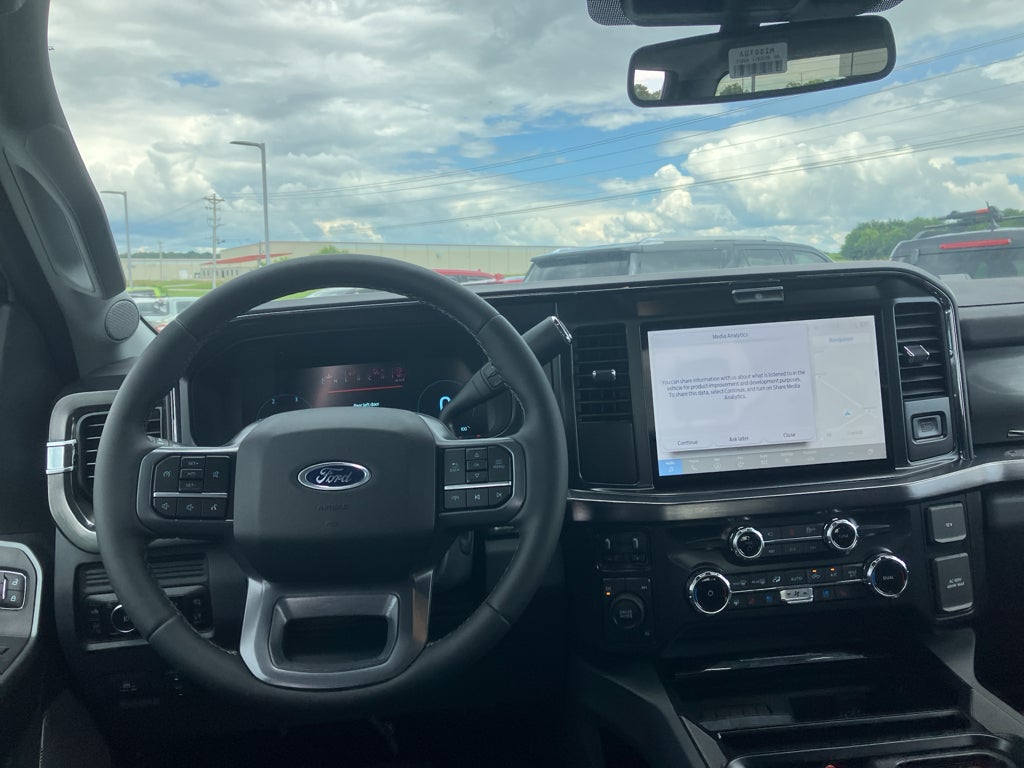

• Gauge cluster display size: 12.00
• Front mounted camera
• Right side camera
• Pickup box camera
• Left side camera
• BLIS with Trailer Tow Coverage blind spot warning
• Dual-zone front climate control
• SYNC 4 voice-activated climate control
• Auto high-beam headlights
• SecuriLock immobilizer

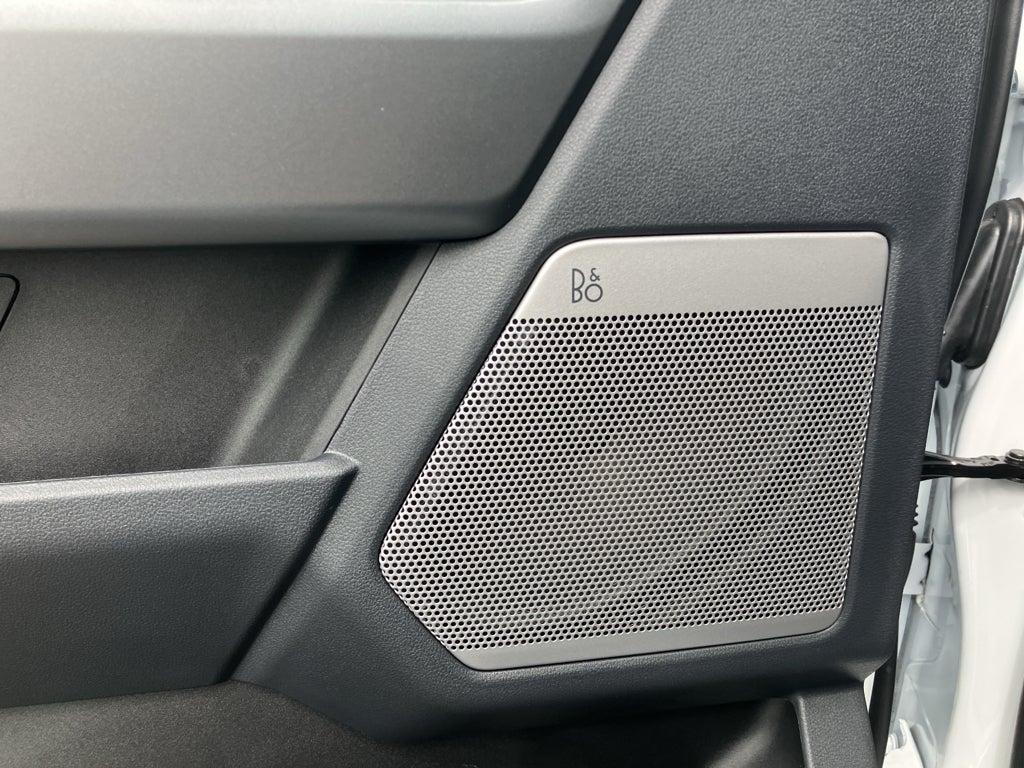

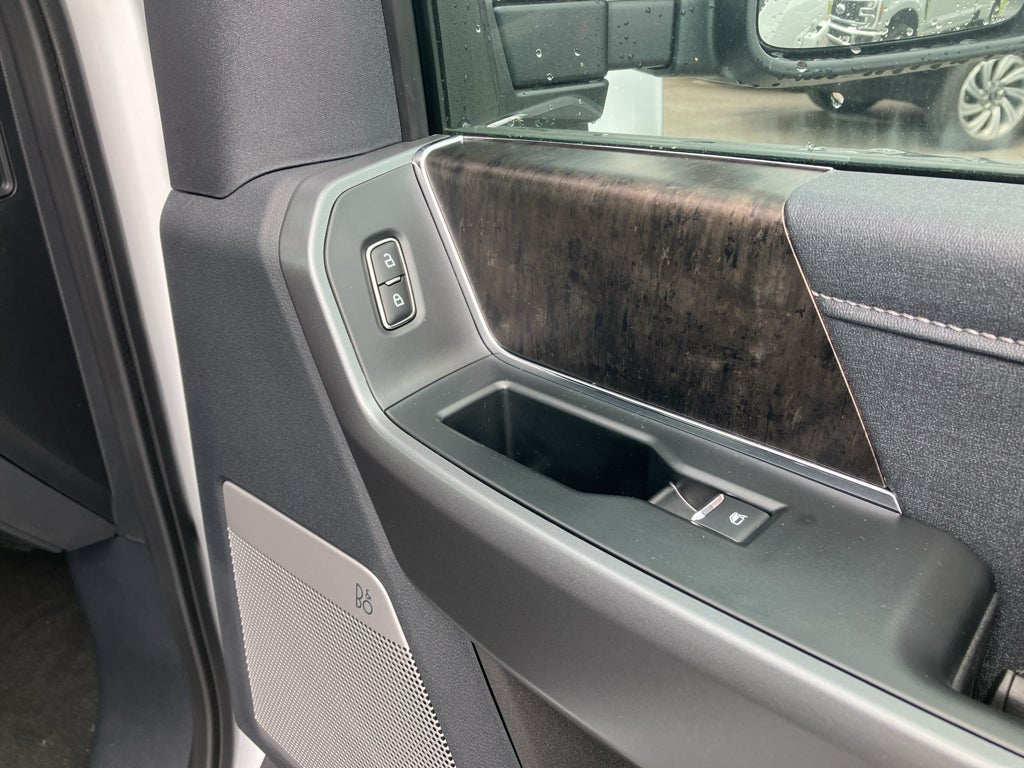

• B&O Sound System by Bang & Olufsen speakers
• SiriusXM Traffic real-time traffic
• TV receiver/streaming
• SYNC 4 handsfree wireless device connectivity
• Smart device wireless mirroring
• Trailer brake controller
• Trailer sway control
• SYNC 4 external memory control
• Digital/analog instrumentation display
• Configurable instrumentation gauges
• PowerScope power extendable trailer mirrors
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill Start Assist

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 8070
• Base Curb Weight (lbs): 7236
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9900
• Curb Weight - Front (lbs): 3993
• Curb Weight - Rear (lbs): 3243
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 25400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1770
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4350
• Maximum Trailering Capacity (lbs): 17700
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9900
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10400
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Forged Aluminum
• Rear Wheel Material: Forged Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 57.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 48
• Exterior Dimensions
• Wheelbase (in): 176
• Length, Overall (in): 266.2
• Width, Max w/o mirrors (in): 96
• Height, Overall (in): 81
• Overhang, Front (in): 38.2
• Cab to Axle (in): 56.1
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8

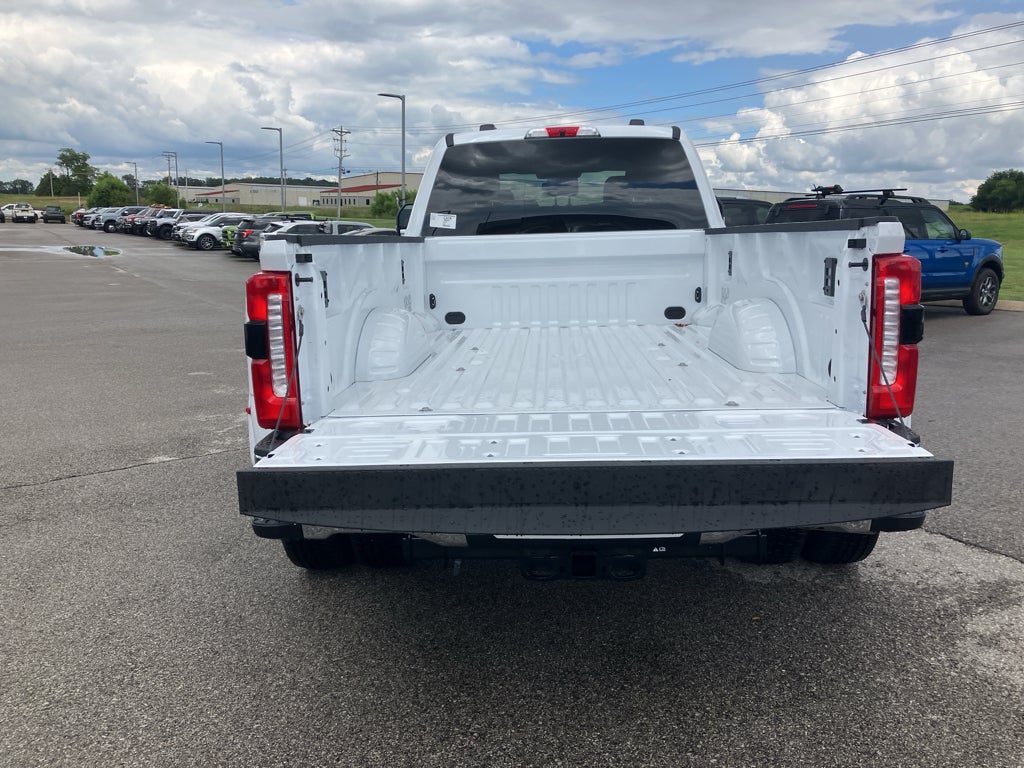

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.1
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 78.5

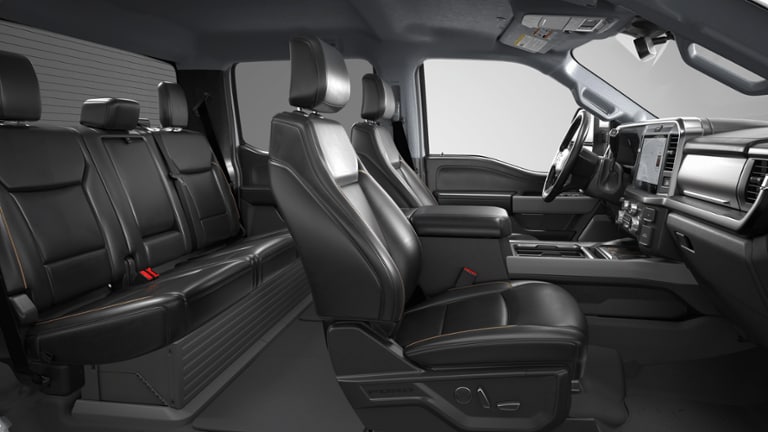

• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

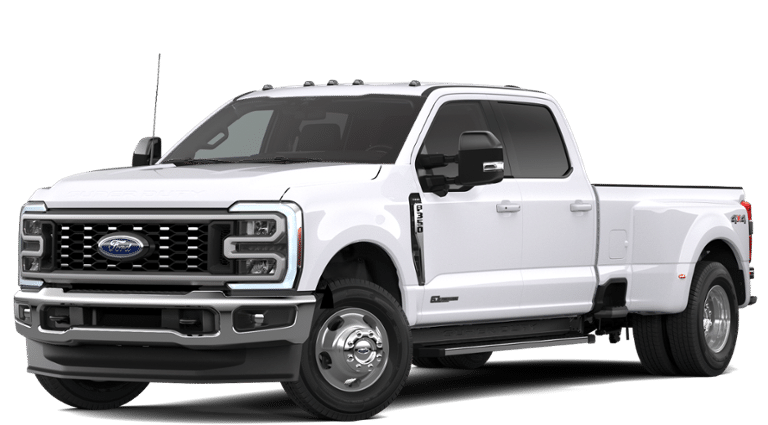

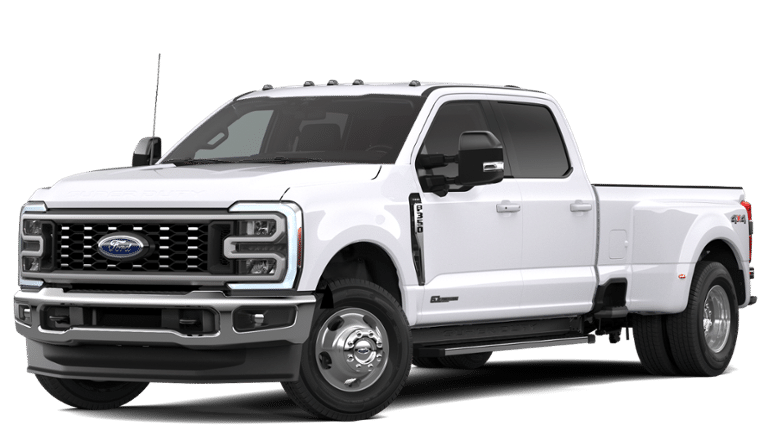

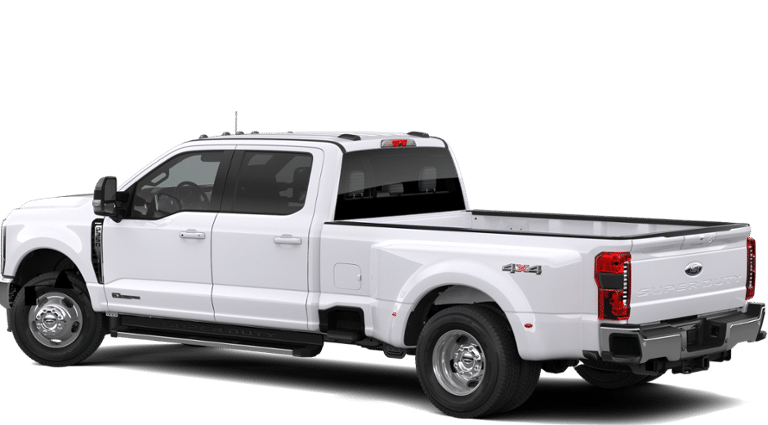

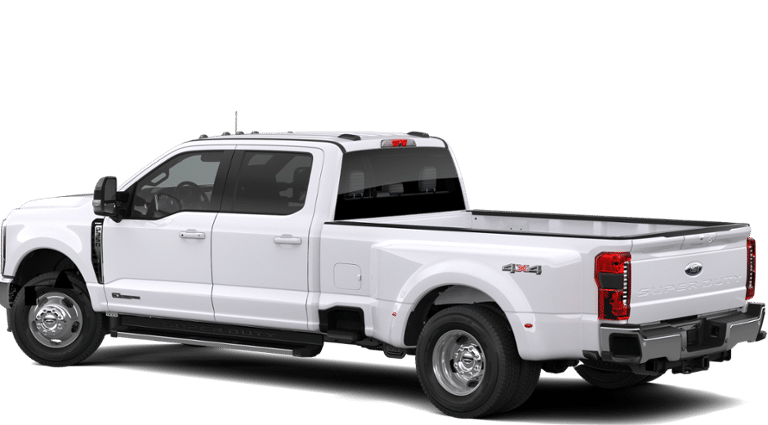

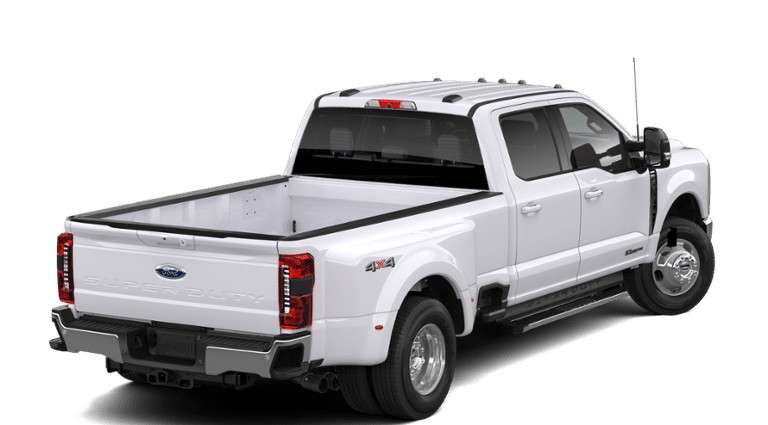

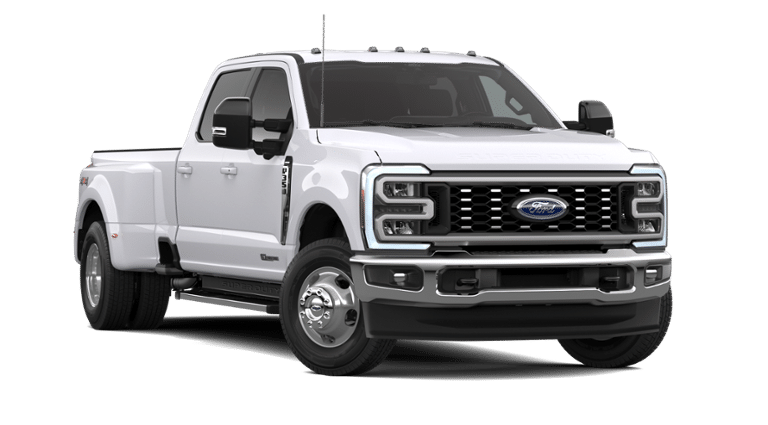

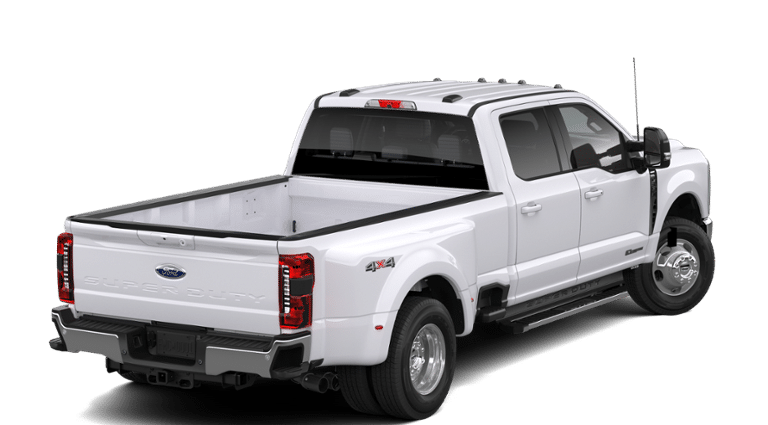

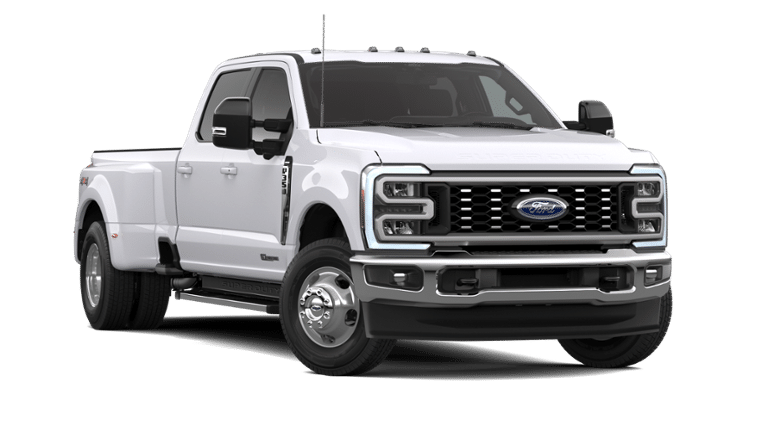

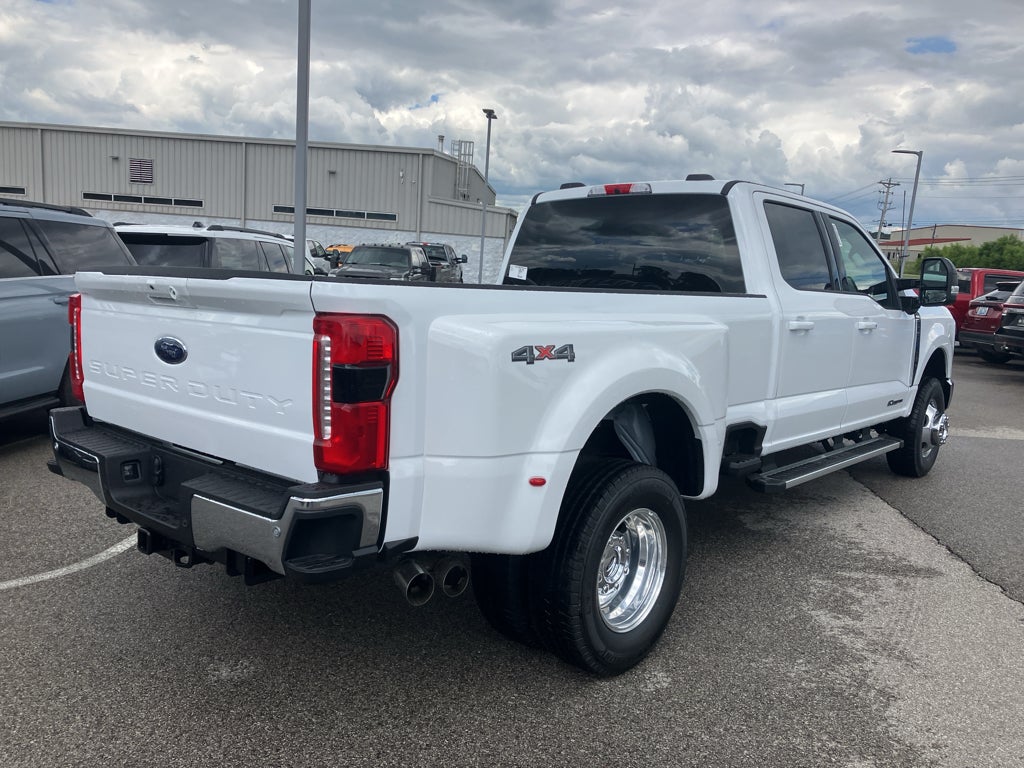

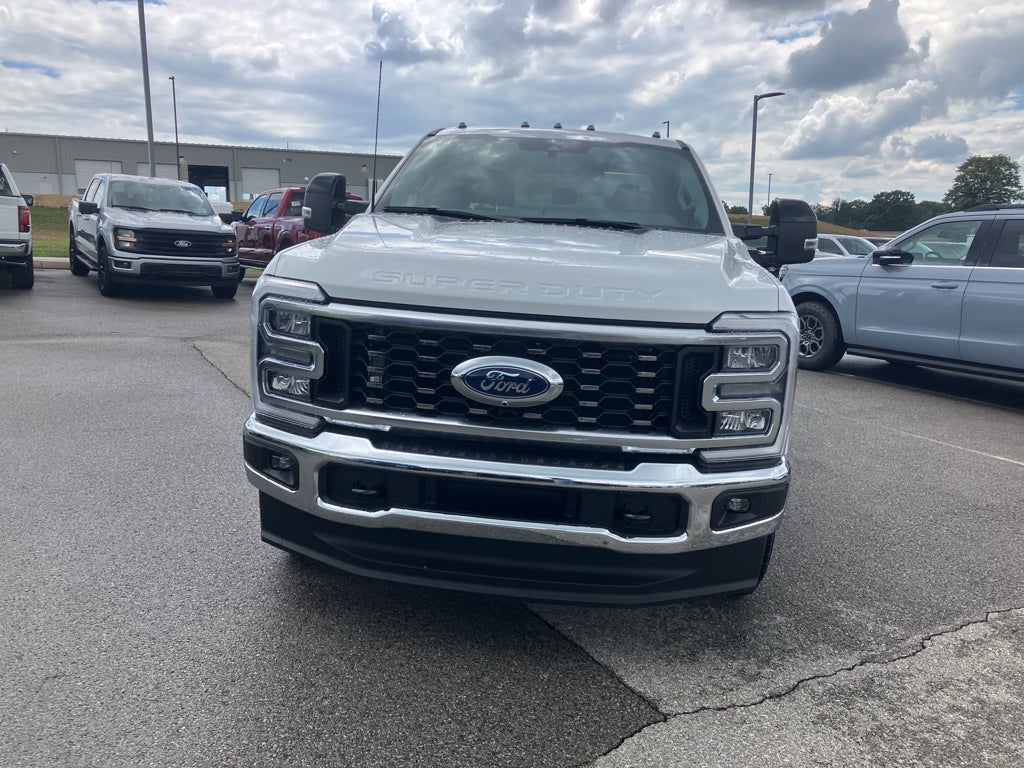

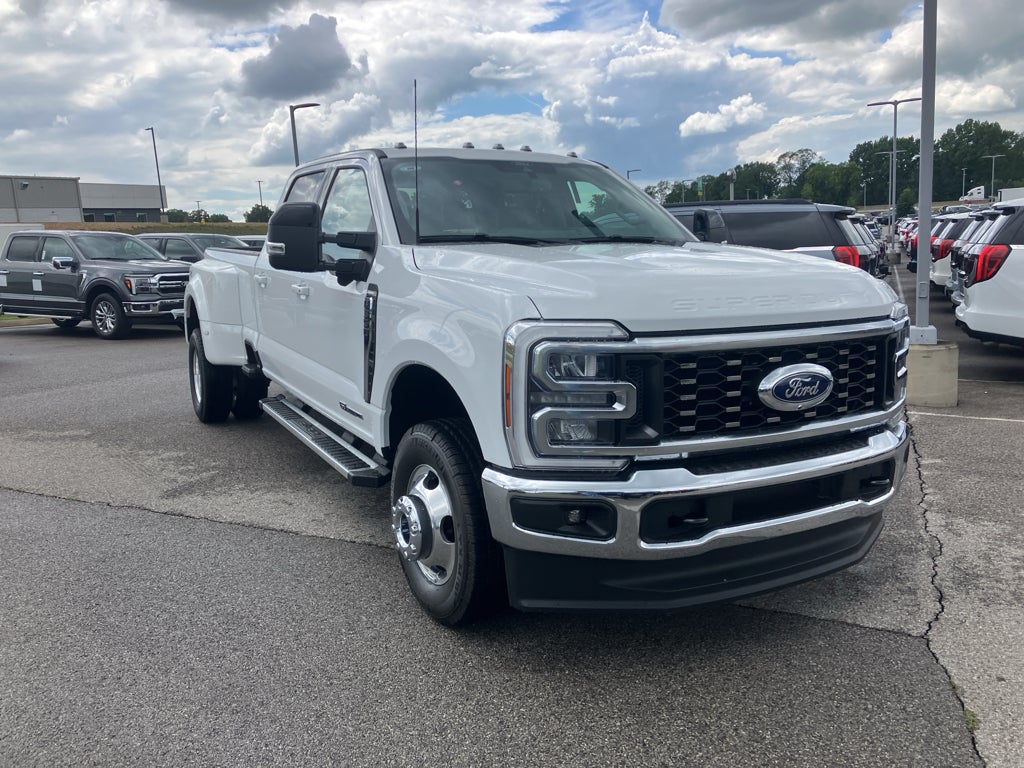

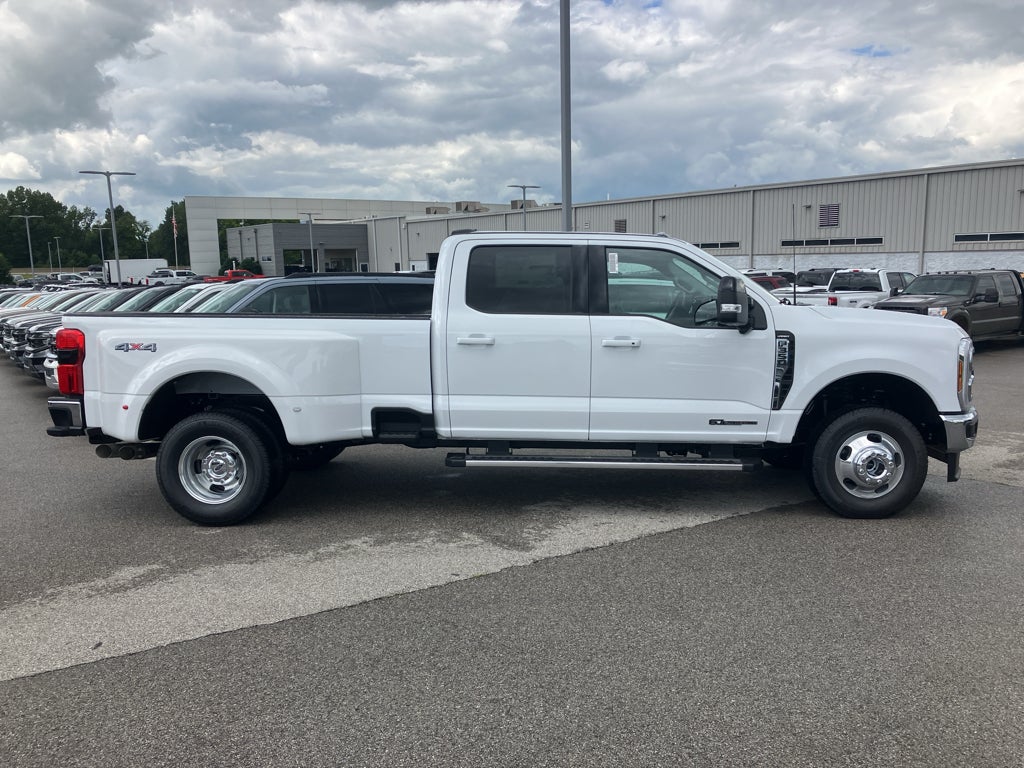

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Crew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
